EMF RF Shielding Wire Mesh For Faraday Cage
Types of shielding wire mesh
It is made of copper wires divided by warp and weft. The mesh is
generally square. Used for sieving various particles,
powder,porcelain clay and glass, porcelain printing, filtering
liquid, gas, etc.

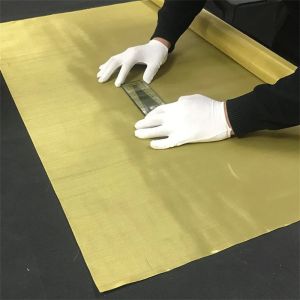

Product name:Brass wire mesh (alias: shielding mesh).
Material:brass wire
Features:non-magnetic, wear-resistant, and good ductility
Specification:3 mesh / inch—200 mesh / inch
Weaving:plain weave, twill weave
Uses:Screen all kinds of particles, powder, porcelain clay, glass,
porcelain printing, filter liquids and gases
Phosphorus copper mesh is also known as a raw material with
excellent value characteristics. It is attributed to tin bronze
mesh.It has the advantages of corrosion resistance, acid and alkali
resistance, and strong wear resistance and ductility. It can
generally be used in special filtration, impurity removal, and
production. Together in some shielding, home wall blocking.
Product Name:Phosphor Copper Wire Mesh (Alias: Tin Bronze Mesh)
Material:phosphor copper wire (tin bronze wire)
Features:non-magnetic, wear-resistant, acid and alkali resistant,
and good ductility
Specification:8 mesh / inch--400 mesh / inch
Weaving:plain weave, twill weave
Uses:Screen all kinds of particles, powder, porcelain clay, glass,
porcelain printing, filter liquids and gases

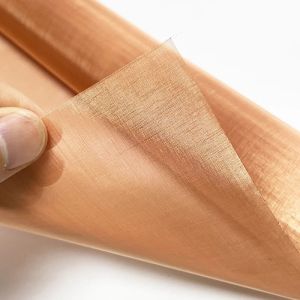

Red copper mesh is a kind of red copper wire, which is used for
radiation protection of special facilities such as cable
circuits,laboratories, and computer rooms. Anti-electromagnetic
interference in electronic equipment, power sector,
aerospace,information industry, military facilities, etc.
Product Name:Red copper meshMaterial:copper wire
Features:non-magnetic, wear-resistant, good sound insulation, and
filtered electron beam
Specification:5 mesh / inch-100 mesh / inch
Weaving:plain weave
Uses:wall sound insulation, electronic display, etc
Technical data of shielding wire mesh
| mesh | wire no.SWG | Aperture (inch) | wire diameter (mm) | Aperure (mm) |
| 6 mesh | 22 | 0.711 | 0.028 | 3.522 |
| 8 mesh | 23 | 0.610 | 0.024 | 2.565 |
| 10 mesh | 25 | 0.508 | 0.020 | 2.032 |
| 12 mesh | 26 | 0.457 | 0.018 | 1.660 |
| 14 mesh | 27 | 0.417 | 0.016 | 1.397 |
| 16 mesh | 29 | 0.345 | 0.014 | 1.243 |
| 18 mesh | 30 | 0.315 | 0.012 | 1.096 |
| 20 mesh | 30 | 0.315 | 0.0124 | 0.955 |
| 22 mesh | 30 | 0.315 | 0.0124 | 0.840 |
| 24 mesh | 30 | 0.315 | 0.0124 | 0.743 |
| 26 mesh | 31 | 0.295 | 0.0116 | 0.682 |
| 28 mesh | 31 | 0.295 | 0.0116 | 0.612 |
| 30 mesh | 32 | 0.274 | 0.011 | 0.573 |
| 32 mesh | 33 | 0.254 | 0.010 | 0.540 |
| 34 mesh | 34 | 0.234 | 0.0092 | 0.513 |
| 36 mesh | 34 | 0.234 | 0.0092 | 0.472 |
| 38 mesh | 35 | 0.213 | 0.0084 | 0.455 |
| 40 mesh | 36 | 0.193 | 0.0076 | 0.442 |
| 42 mesh | 36 | 0.193 | 0.0076 | 0.412 |
| 44 mesh | 37 | 0.173 | 0.0068 | 0.404 |
| 46 mesh | 37 | 0.173 | 0.0068 | 0.379 |
| 48 mesh | 37 | 0.173 | 0.0068 | 0.356 |
| 50 mesh | 37 | 0.173 | 0.0068 | 0.335 |
| 60 × 50 mesh | 36 | 0.193 | 0.0076 | - |
| 60 × 50 mesh | 37 | 0.173 | 0.0068 | - |
| 60 mesh | 37 | 0.173 | 0.0068 | 0.250 |
| 70 mesh | 30 | 0.132 | 0.0052 | 0.231 |
| 80 mesh | 40 | 0.122 | 0.0048 | 0.196 |
| 90 mesh | 41 | 0.112 | 0.0044 | 0.170 |
| 100 mesh | 42 | 0.012 | 0.004 | 0.152 |
| 120 × 108 mesh | 43 | 0.091 | 0.0036 | - |
| 120 mesh | 44 | 0.081 | 0.0032 | 0.131 |
| 140 mesh | 46 | 0.061 | 0.0024 | 0.120 |
| 150 mesh | 46 | 0.061 | 0.0024 | 0.108 |
| 160 mesh | 46 | 0.061 | 0.0024 | 0.098 |
| 180 mesh | 47 | 0.051 | 0.002 | 0.090 |
| 200 mesh | 47 | 0.051 | 0.002 | 0.076 |
Material of shielding wire mesh
- brass wire--purity--Cu: 65% , Zn:35%
- red copper wire--purity--Cu:99.8%
- phoshpor bronze wire--purity--Cu:85%-90% , Sn:5%-15%
Feature of shielding wire mesh
- non-magnetic, wear resistance
- acid and alkali resistance, good ductility root barrier copper wire
mesh
- good conductivity, good heat transfer performance Copper Wire Mesh
- EMF shielding Electronic Signal Shielding Mesh
