Tin Copper Plated AISI316 Safety Stainless Steel Cable Mesh With 80mm Apr 2mm Dia

    Buy cheap Tin Copper Plated AISI316 Safety Stainless Steel Cable Mesh With 80mm Apr 2mm Dia from wholesalers

    Buy cheap Tin Copper Plated AISI316 Safety Stainless Steel Cable Mesh With 80mm Apr 2mm Dia from wholesalers
    • Buy cheap Tin Copper Plated AISI316 Safety Stainless Steel Cable Mesh With 80mm Apr 2mm Dia from wholesalers
    • Buy cheap Tin Copper Plated AISI316 Safety Stainless Steel Cable Mesh With 80mm Apr 2mm Dia from wholesalers
    • Buy cheap Tin Copper Plated AISI316 Safety Stainless Steel Cable Mesh With 80mm Apr 2mm Dia from wholesalers

    Tin Copper Plated AISI316 Safety Stainless Steel Cable Mesh With 80mm Apr 2mm Dia

    Ask Lasest Price
    Brand Name : Safety Cable Mesh
    Model Number : safety cable mesh
    Certification : ISO9001-2015
    Payment Terms : L/C, T/T
    Supply Ability : 6000 square meters per 30 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Tin Copper Plated AISI316 Safety Stainless Steel Cable Mesh With 80mm Apr 2mm Dia

    Tin-Copper Plated Architectural AISI316 Safety Cable Mesh With 80mm Apr 2mm Dia


    Sample size of Tin-Copper Plated Architectural AISI316 Safety Cable Mesh With 80mm Apr 2mm Dia


    materialRope diameterapertureangle
    AISI3162mm(7x7)80mmx80mm45 degress
    heightlengthsurface treatmentrope break loading
    2000mmto be ordertine-plated copper290kgs

    please noted as follows:


    experienced

    Served many projects of railing,safety net,green wall,zoo enclosure.9 years flexible cable Mesh OEM & ODM.

    customer services

    Assist customer analyse the design,find exact needs.make optimal production plans. We Provide small free samples for checking or testing.

    precsion dimension

    Clearly know the potentrial tolerance of mesh.particular irregular panel. have reasonable production plan.100% Install Guarantee.

    Surface treatment methods

    1.Lacquer coating. Lacquer coating is cheaper than other surface treatment.

    2.Anodic oxidation. It is better processing and looks better than the lacquer coating. But it is only for the aluminum alloy wire.

    3.Acid washing. it is suitable for the stainless steel wire. After washing from acid, the metal drapery is very light


    images deatials of Tin-Copper Plated Architectural AISI316 Safety Cable Mesh With 80mm Apr 2mm Dia



    specification details of Tin-Copper Plated Architectural AISI316 Safety Cable Mesh With 80mm Apr 2mm Dia


    Hole Size
    1.2MM(3/64)
    1.6MM(1/16)
    2.0MM(5/64)
    2.4MM(3/32)
    3.2MM(1/8)
    20 x 35mm
    YT-1235
    25 x 42mm
    YT-1225
    YT-1625
    30 x 52mm
    YT-1230
    YT-1630
    YT-2030
    35 x 60mm
    YT-1235
    YT-1635
    YT-2035
    38 x 66mm
    YT-1238
    YT-1638
    YT-2038
    YT-2438
    40 x 69mm
    YT-1240
    YT-1640
    YT-2040
    YT-2440
    YT-3040
    50 x 86mm
    YT-1250
    YT-1650
    YT-2050
    YT-2450
    YT-3050
    60 x 104mm
    YT-1260
    YT-1660
    YT-2060
    YT-2460
    YT-3060
    70 x 120mm
    YT-1270
    YT-1670
    YT-2070
    YT-2470
    YT-3070
    76 x 131mm
    YT-1276
    YT-1676
    YT-2076
    YT-2476
    YT-3076
    80 x 138mm
    YT-1280
    YT-1680
    YT-2080
    YT-2480
    YT-3080
    90 x 154mm
    YT-1290
    YT-1690
    YT-2090
    YT-2490
    YT-3090
    100 x 173mm
    YT-12100
    YT-16100
    YT-20100
    YT-24100
    YT-30100
    120 x 206mm
    YT-12120
    YT-16120
    YT-20120
    YT-24120
    YT-30120

    Recommended Tiger Tin-Copper Plated Architectural AISI316 Safety Cable Mesh With 80mm Apr 2mm Dia

    Material
    Cable Diameter
    Hole Size
    Normal Break
    SS304/316/316L
    3/32 (2.4MM)
    2.5 x 2.5
    920 LBS
    SS304/316/316L
    SS304/316/316L
    3/32 (2.4MM)
    2 x 2"
    920 LBS
    SS304/316/316L
    5/64 (2.0MM)
    2.5 x 2.5"
    676 LBS
    SS304/316/316L
    5/64 (2.0MM)
    2 x 2
    676 LBS
    SS304/316/316L
    SS304/316/316L
    1/8 (3.2MM)
    2 x 2"
    1600 LBS
    SS304/316/316L
    1/8 (3.2MM)
    3 x 3"
    1600 LBS

    Recommended Monkey Tin-Copper Plated Architectural AISI316 Safety Cable Mesh With 80mm Apr 2mm Dia

    Material
    Cable Diameter

    Hole Size
    Normal Break
    SS304/316/316L

    3/32 (2.4MM)
    2.5 x 2.5"
    920 LBS
    SS304/316/316L
    3/32 (2.4MM)
    2 x 2"
    920 LBS
    SS304/316/316L
    5/64 (2.0MM)
    1.5 x 1.5"
    676 LBS
    SS304/316/316L
    5/64 (2.0MM)
    2 x 2"
    676 LBS
    SS304/316/316L
    1/16 (1.6MM)
    1.5 x 1.5
    480 LBS
    SS304/316/316L
    SS304/316/316L
    1/16 (1.6MM)
    1.2 x 1.2"
    480 LBS

    application of AISI 316 safety cable mesh

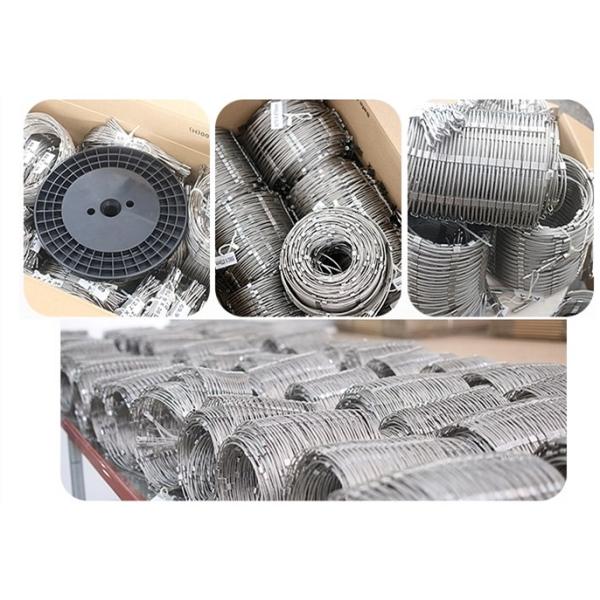

    package details of safety cable mesh
